Model |
E025 |
E05 |
E1 |
E1.5 |
E2 |
E2P |
E3 |
E5 |
E10 |
E15 |
E20 |
|
|
WLL(t) |
0.25 |
0.5 |
1 |
1.5 |
2 |
2 |
3 |
5 |
10 |
15 |
20 |
|
|
Standard Lift(m) |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
5 |
5 |
5 |
|
|
Test Load(kN) |
3.75 |
7.5 |
15 |
22.5 |
30 |
30 |
45 |
75 |
150 |
225 |
300 |
|
|
Effort Required For Rated WLL(n) |
200 |
240 |
370 |
490 |
425 |
440 |
490 |
510 |
470 |
470 |
470*2 |
|
|
Hand Chain(mm) |
3*15 |
5*25 |
||||||||||
|
Strands Of Load Chain |
1 |
1 |
1 |
1 |
2 |
1 |
2 |
2 |
4 |
6 |
8 |
|
|
Load Chain(mm) |
4*12 |
5*15 |
6*18 |
8*24 |
6*18 |
8*24 |
8*24 |
10*30 |
10*30 |
10*30 |
10*30 |
|
|

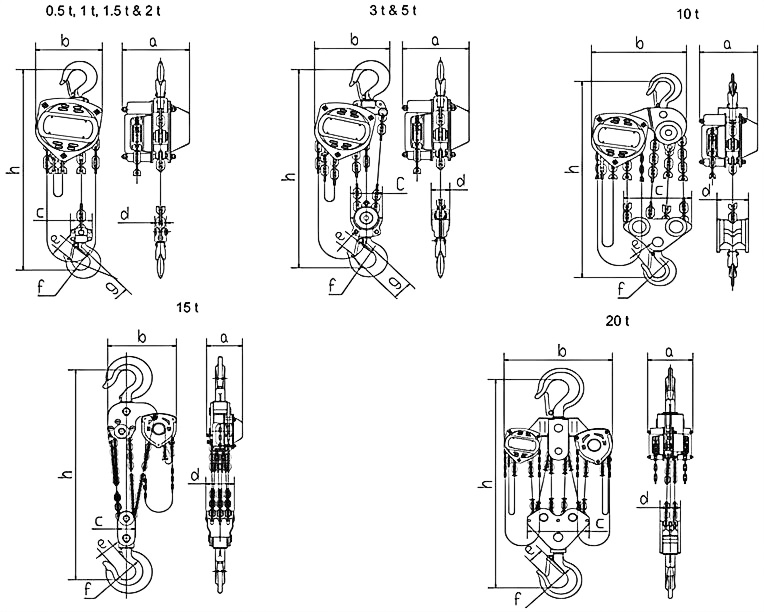

Dimension (mm) |
a |
102 |
125 |
134 |
151 |
134 |
157 |
157 |
180 |
180 |
210 |
225 |
|
b |
106 |
130 |
155 |
173 |
185 |
185 |
235 |
262 |
365 |
406 |
550 |
|
|
c |
29.5 |
43 |
51 |
64 |
80 |
64 |
100 |
126 |
260 |
110 |
286 |
|
|
d |
21 |
25 |
30 |
34 |
55 |
34 |
56 |
74 |
98 |
168 |
123 |
|
|
e |
27 |
27 |
33 |
33.5 |
37 |
37 |
43.5 |
51 |
64 |
80 |
82 |
|
|
f |
32 |
32 |
40 |
42 |
46 |
46 |
52 |
60 |
85 |
100 |
110 |
|
|
g |
35 |
35 |
45 |
47 |
52 |
52 |
62.5 |
79 |
- |
- |
- |
|
|
h |
250 |
280 |
306 |
368 |
450 |
445 |
520 |
600 |
760 |
1000 |
1150 |
|
|
N.W(kg) |
4.35 |
7.8 |
11.1 |
15.8 |
15.14 |
16.8 |
24.2 |
39.8 |
89.7 |
91.1 |
197 |
|
|
Extra Weight Per Lifting Meter (kg) |
0.38 |
0.75 |
1.5 |
2.25 |
3 |
3.0 |
4.5 |
7.5 |
15 |
22.5 |
30 |
|
