Model |
K025 |
K05 |
K1 |
K1.5 |
K2 |
K3 |
K3.2 |
K5 |
K7.5 |
K10 |
K10PP |
K15 |
K20 |
K30 |
|
|
WLL(t) |
0.25 |
0.5 |
1 |
1.5 |
2 |
3 |
3.2 |
5 |
7.5 |
10 |
10 |
15 |
20 |
30 |
|
|
Standard Lift(m) |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
5 |
5 |
5 |
5 |
5 |
5 |
|
|
Test Load(kN) |
3.75 |
7.5 |
15 |
22.5 |
30 |
45 |
48 |
75 |
112.5 |
150 |
150 |
225 |
300 |
450 |
|
|
Effort Required For Rated WLL(n) |
200 |
370 |
300 |
450 |
410 |
430 |
430 |
460 |
460 |
460 |
455 |
480 |
460*2 |
480*2 |
|
|
Hand Chain(mm) |
3*15 |
4.8*22 |
5*25 |
||||||||||||
|
Strands Of Load Chain |
1 |
1 |
1 |
1 |
1 |
2 |
1 |
2 |
3 |
4 |
3 |
6 |
8 |
12 |
|
|
Load Chain(mm) |
4*12 |
5*15 |
6.3*19 |
7.1*21 |
8*24 |
7.1*21 |
10*28 |
9*27 |
9*27 |
9*27 |
10*28 |
9*27 |
9*27 |
10*28 |
|
|

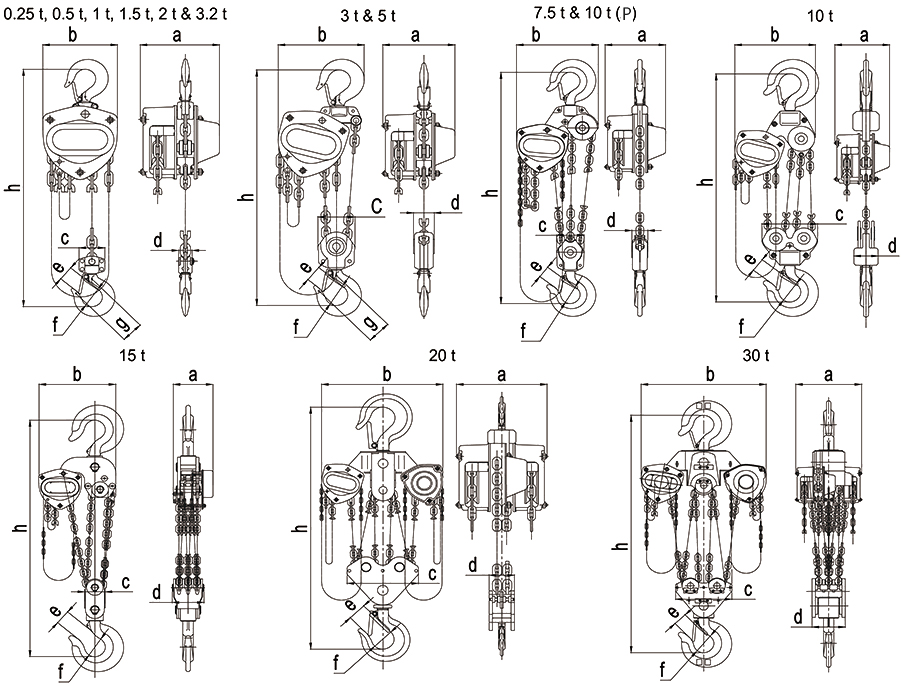

Dimension (mm) |
a |
96 |
130.5 |
161.5 |
170 |
183.5 |
170 |
190.5 |
192 |
192 |
192 |
190.5 |
220 |
230 |
360 |
|
b |
109 |
139.5 |
161 |
182 |
202.5 |
235 |
235 |
282 |
373 |
360.5 |
356 |
492 |
655 |
680 |
|
|
c |
29.5 |
43 |
51 |
64 |
64 |
106 |
68.5 |
133 |
120 |
263 |
120 |
110 |
286 |
306 |
|
|
d |
21 |
25 |
30 |
34 |
34 |
53 |
38.6 |
64 |
70 |
95 |
70 |
170 |
123 |
180 |
|
|
e |
27 |
27 |
33 |
33.5 |
37 |
43.5 |
43 |
51 |
64 |
64 |
64 |
80 |
82 |
82 |
|
|
f |
32 |
32 |
40 |
42 |
46 |
52 |
49.5 |
60 |
85 |
85 |
85 |
100 |
110 |
110 |
|
|
g |
35.5 |
35 |
45 |
47 |
52 |
62.5 |
62 |
79 |
- |
- |
- |
- |
- |
- |
|
|
h |
250 |
285 |
295 |
350 |
37.5 |
510 |
485 |
600 |
740 |
760 |
760 |
1000 |
1150 |
1250 |
|
|
N.W(kg) |
3.9 |
10.8 |
12.4 |
15.6 |
20 |
24 |
27.4 |
41 |
72.4 |
94.9 |
85.2 |
153 |
205 |
284 |
|
|
Extra Weight Per Lifting Meter (kg) |
0.37 |
01.5 |
1.8 |
2.1 |
2.3 |
3.2 |
3.2 |
4.4 |
6.2 |
7.6 |
7.9 |
11.4 |
15.8 |
29.3 |
|
