Chain Block R Type HSZ-R

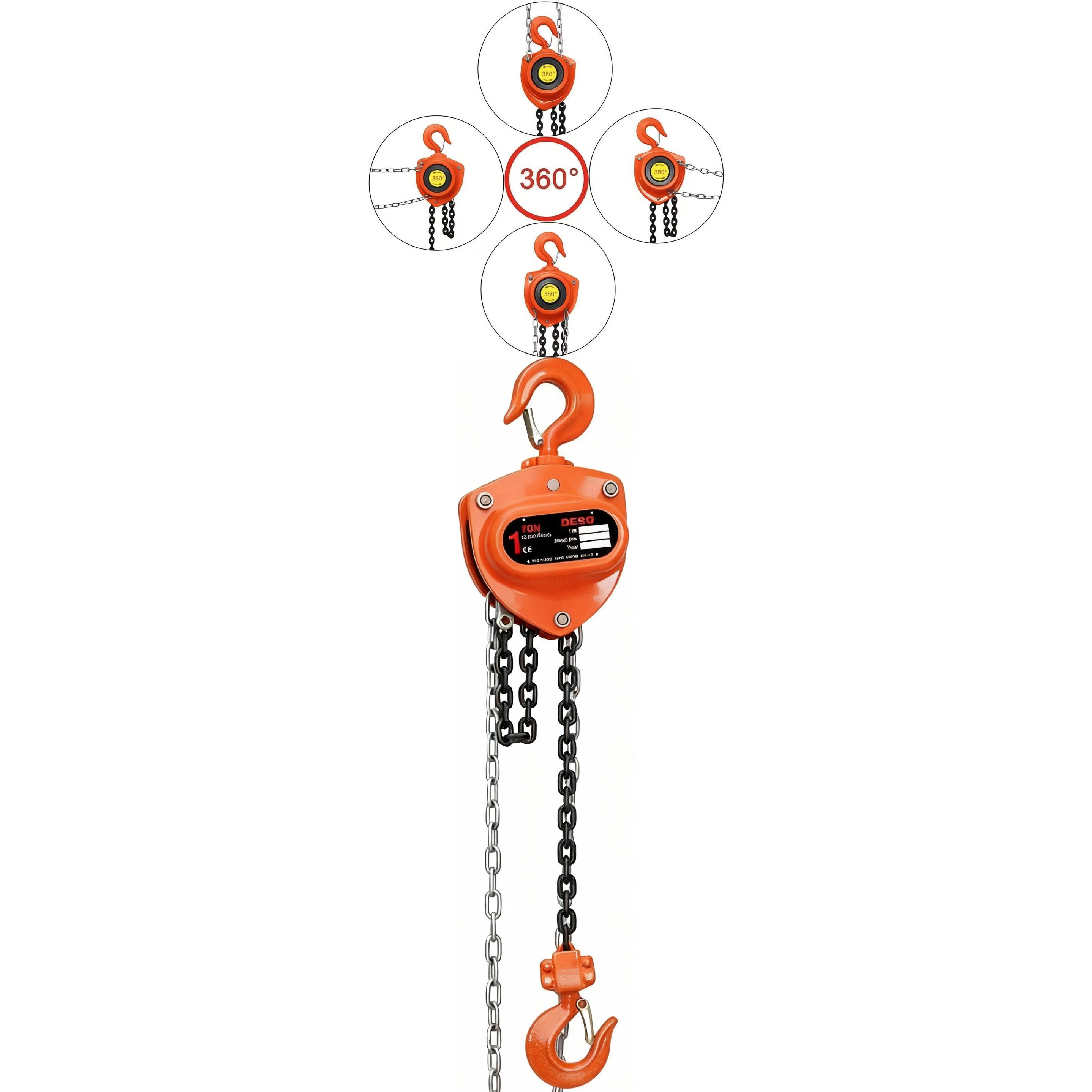

  1. 360 Degree Rotation,Can Pull The Hand Chain From Any Angle
  2. With Bearing And Optimized Gears,Less Effort Required To Lift Rated Capacity
  3. All Component With Higher Precision And Smaller Gaps.
  4. Wider Hook Open Provide More Flexibility /Overload Limiter Available At Extra Cost
  5. High Precision Load Chain Guide,High Endurance Roller On Load Sprocket
  6. Automatic Double Pawl Brake System,Asbestos Free Friction Disc
  7. Engineering-Optimized Hand Chain Wheel,Preventing Hand Chain Stack In Fast Operation
  8. Quenched And Tempered High Tensile G80 Load Chain And Hooks
  9. Smooth Surface With Powder Coated Preventing Rust
  10. Individual Serial No.For Each Set,Wheel Cover With Label
  11. Meet All The Requirement of EN13157,JBT7334,ASME B30.16,AS1418.

Product Introduction

Model

R1

R1.5

R2

R3

R3P

R5

R10

R15

R20

R30

R50

WLL(t)

1

1.5

2

3

3

5

10

15

20

30

50

Standard Lift(m)

2.5

2.5

2.5

3

3

3

3

3

3

3

3

Test Load(kN)

15

22.5

30

45

45

75

150

225

300

450

750

Effort Required For Rated WLL(n)

285

380

340

370

370

370

380

380

390*2

390*2

390*2

Hand Chain(mm)

5*23.6

Strands Of Load Chain

1

1

1

2

1

2

4

6

8

12

22

Load Chain(mm)

6*18

8*24

10*30

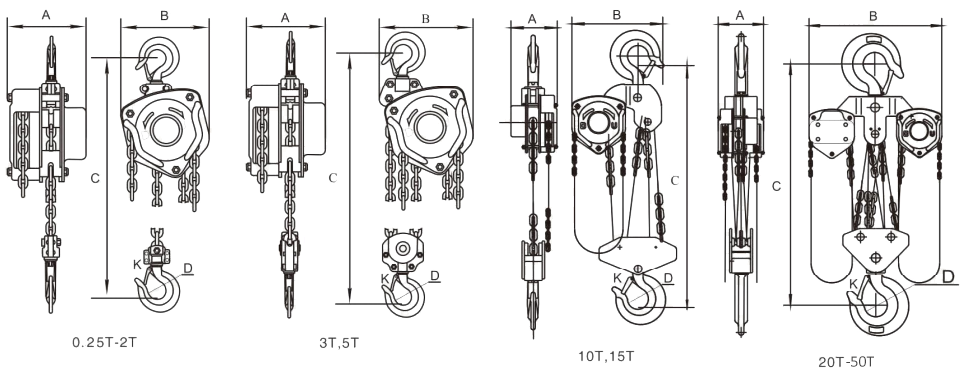

Dimension

(mm)

A

132

173

175

205

189

189

189

200

200

350

430

B

148

196

210

255

280

280

463

718

840

700

930

C

376

442

470

548

625

688

765

900

950

1020

1920

D

35

45

50

55

55

65

75

95

106

110

130

K

23

33

35

39

40

45

54

71

82

85

130

N.W(kg)

10.8

16.5

18.5

24

27

41.1

78

135

192

300

1120

Packing Meas(cm)

24*20*18

32*22*20

32*22*20

32*25*20

32*25*20

40*30*20

50*48*30

75*55*30

72*70*32

78*70*35

130*100*80

Extra Weight Per Lifting Meter (kg)

1.6

2.4

2.4

3.7

3

5.4

9.8

14.7

19.6

28.5

50.5
