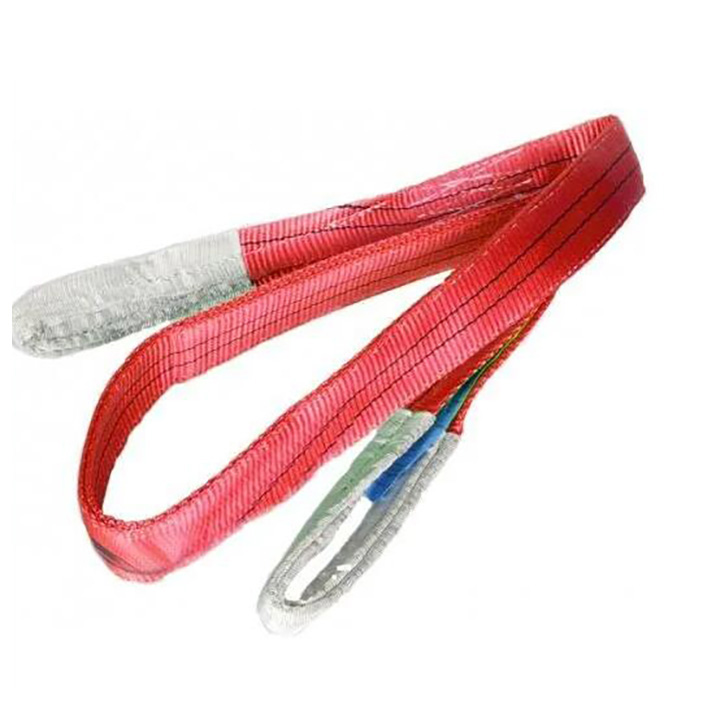

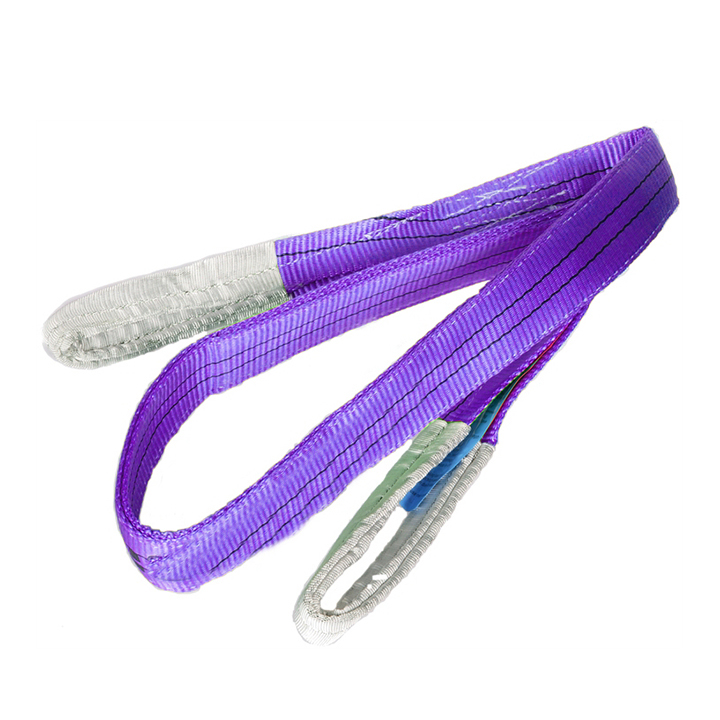

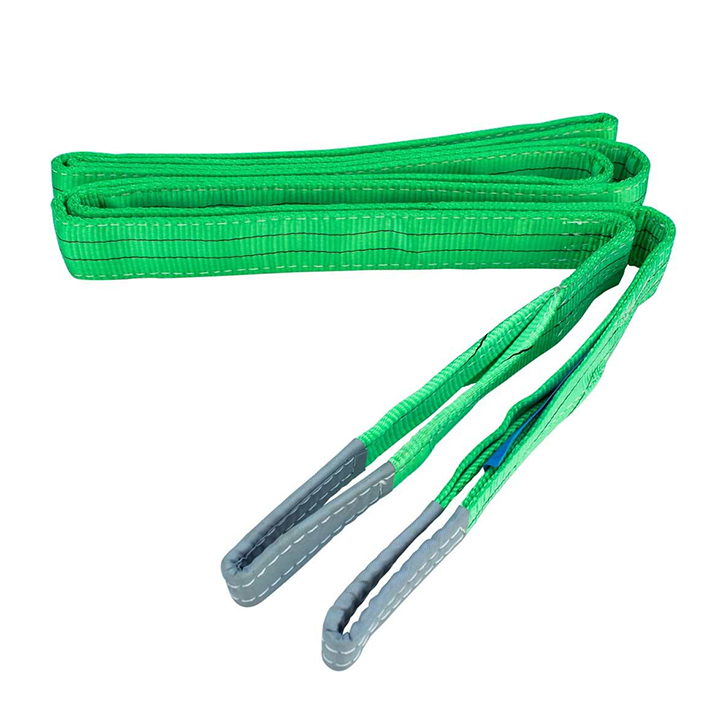

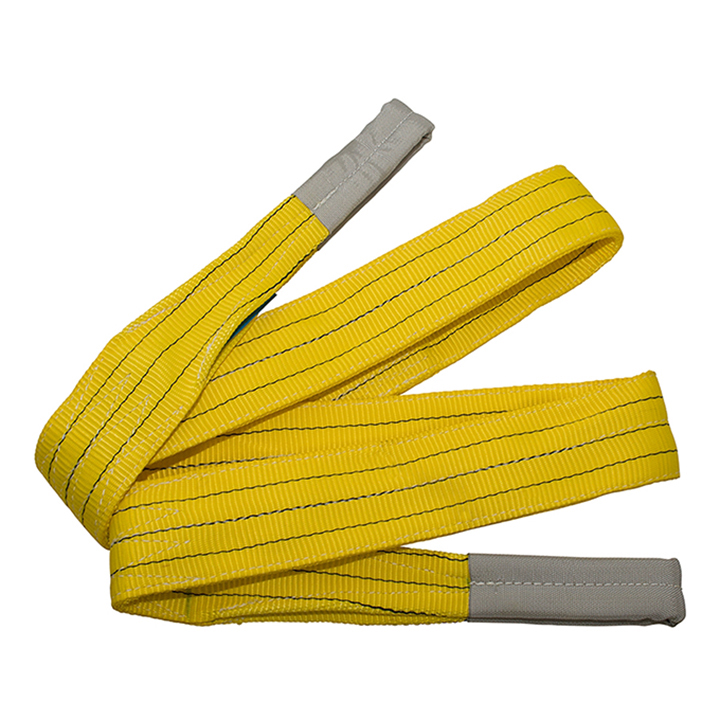

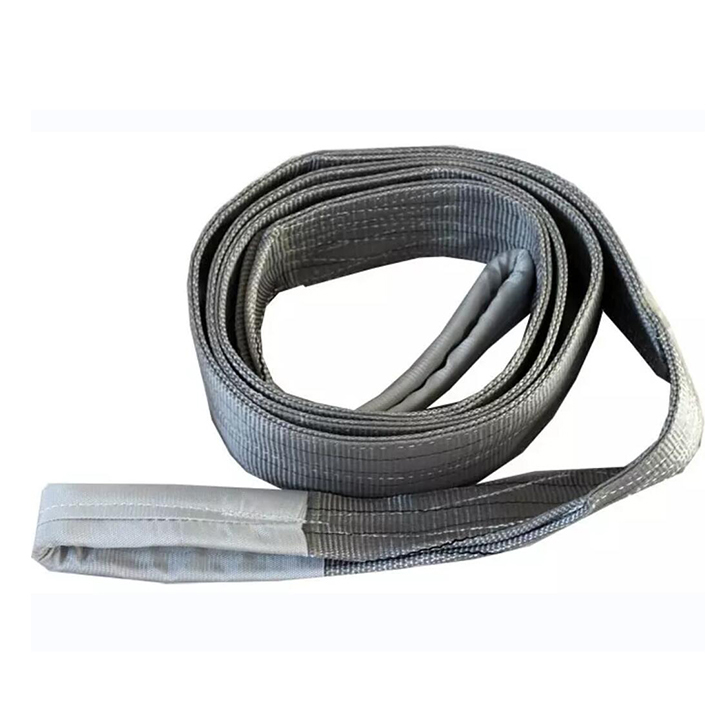

Webbing Sling 7:1 EN1492-1

1. Different sewing methods available upon request

2. Material:100% high tensile polyester(PES)

3. Single ply or double ply upon request

4. WLL can be easily distinguished by color and webbing width

5. Color code according to EN1492-01,also with capacity stripes on the sling(each stripe equal to 1T capacity)

6. Can provide wide and smooth to the lifted object

7. With high protection against abrasion and damage, to avoid the damage by sharp object,it can also be equipped with proper protective sleeve

8. Safety factor 4:1,5:1,6:1,7:1,8:1 available

9. Working temperature:-40℃ to 100℃

10. Manufactured according to EN1492-1 and EC directive 2006/42/EC

11. Special ID tag available optional with extra cost

Product Introduction

Webbing

Width

(mm)

WLL&Color Code

(EN1492-1)

WLL With One Webbing Sling

WLL With Two Webbing Slings

Straight Lift

Choked Lift

Lift In Different Angle

Straight Lift

Choked Lift

Straight Lift

Choked Lift

0°-7°

7°-45°

45°-60°

≤45°

≤45°

45°-60°

45°-60°

M=1

M=0.8

M=2.0

M=1.4

M=1.0

M=1.4

M=1.12

M=1.0

M=0.8

25/30

1T

1000

800

2000

1400

1000

1400

1120

1000

800

50/60

2T

2000

1600

4000

2800

2000

2800

2240

2000

1600

75/90

3T

3000

2400

6000

4200

3000

4200

3360

3000

2400

100/120

4T

4000

3200

8000

5600

4000

5600

4480

4000

3200

125/140

5T

5000

4000

10000

7000

5000

7000

5600

5000

4000

150

6T

6000

4800

12000

8400

6000

8400

6720

6000

4800

200

8T

8000

6400

16000

11200

8000

11200

8960

8000

6400

250

10T

10000

8000

20000

14000

10000

14000

11200

10000

8000

300

12T

12000

9600

24000

16800

12000

16800

13440

12000

9600
