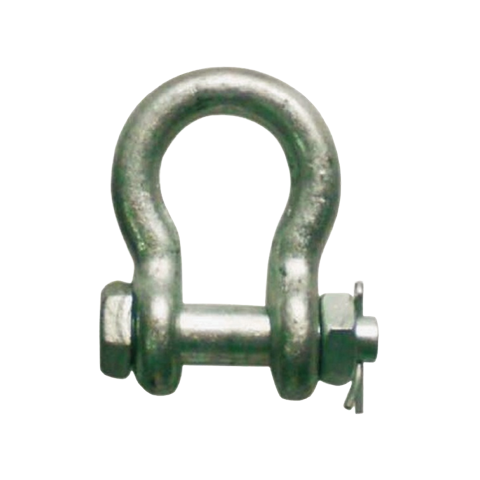

Heavy Duty Forged Bolt Type Shackle(HFS)

1. Forged-Quenched and Tempered,With Alloy Pin&Carbon Steel Body

2. Test Load Is 2 Times Of The WLL

3. MBL Is 5 Times Of The WLL

Product Introduction

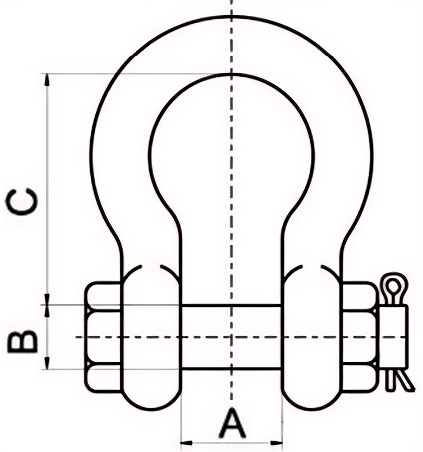

Drawing

Item No.

Size(in)

WLL(t)

Dimension(MM)

N.W(KG)

A

B

C

HFS-4”

4”

200

184

130

396

150

HFS-5”

5”

300

200

150

450

363

HFS-6-1/2”

6-1/2”

500

240

185

557.5

684

HFS-8

8

800

300

240

660

1313

HFS-9-1/2”

9-1/2”

1000

390

270

780.5

2040
