1. Forged From Carbon Steel With Open-Die Forging Process
2. Test Load Is 2 Times Of The WLL
3. Material SS304/316 Available
|
Item No. |
WLL(KG) |

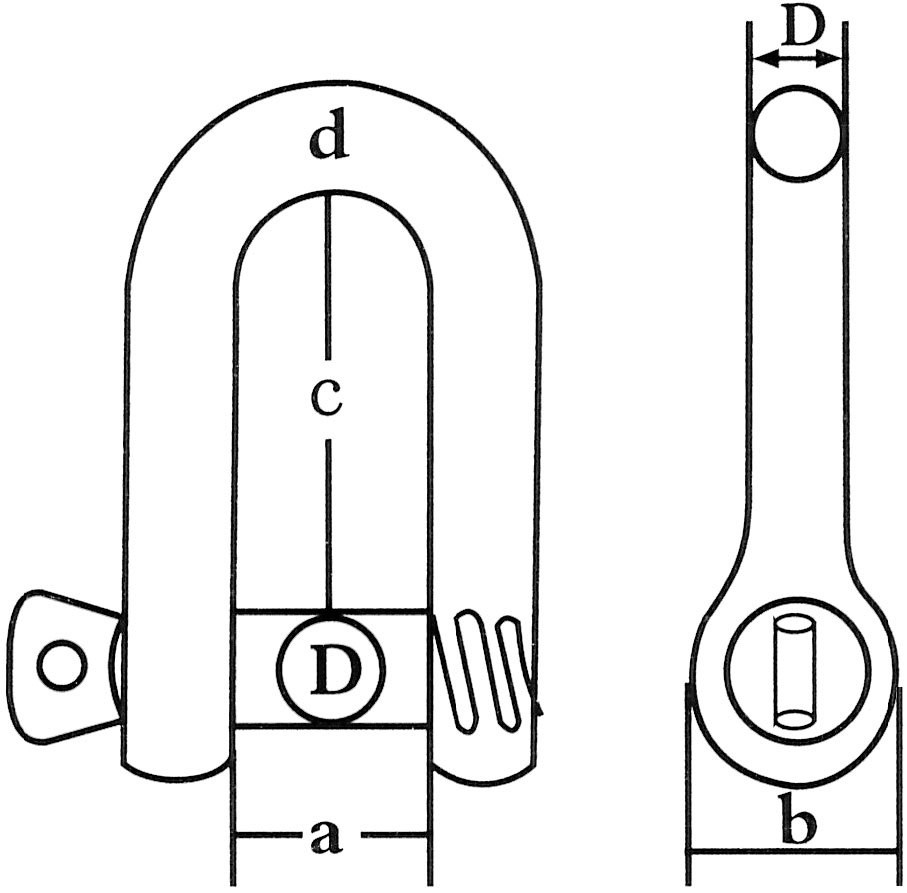

Dimension(MM) |
N.W(KG) |
||||
|
D |
d |
a |
c |
b |
|||
|
EDS-5 |
80 |
5 |
5 |
10 |
19 |
11 |
0.019 |
|
EDS-6 |
100 |
6 |
6 |
13 |
25 |
14 |
0.034 |
|
EDS-8 |
200 |
8 |
8 |
16 |
32 |
18 |
0.07 |
|
EDS-10 |
320 |
10 |
10 |
19 |
38 |
20 |
0.13 |
|
EDS-12 |
520 |
12 |
12 |
25 |
51 |
26 |
0.24 |
|
EDS-16 |
800 |
16 |
16 |
32 |
64 |
33 |
0.5 |
|
EDS-20 |
1100 |
20 |
20 |
38 |
76 |
40 |
0.8 |
|
EDS-22 |
1500 |
22 |
22 |
44 |
89 |
50 |
1.3 |
|
EDS-25 |
2100 |
25 |
25 |
51 |
100 |
57 |
2 |
|
EDS-28 |
3000 |
28 |
28 |
57 |
115 |
68 |
3 |
|
EDS-32 |
3500 |
32 |
32 |
64 |
127 |
73 |
4.3 |
|
EDS-38 |
5000 |
38 |
38 |
76 |
152 |
85 |
6.75 |
|
EDS-45 |
7000 |
45 |
45 |
90 |
180 |
96 |
12.5 |
|
EDS-50 |
8000 |
50 |
50 |
102 |
200 |
108 |
17.5 |
