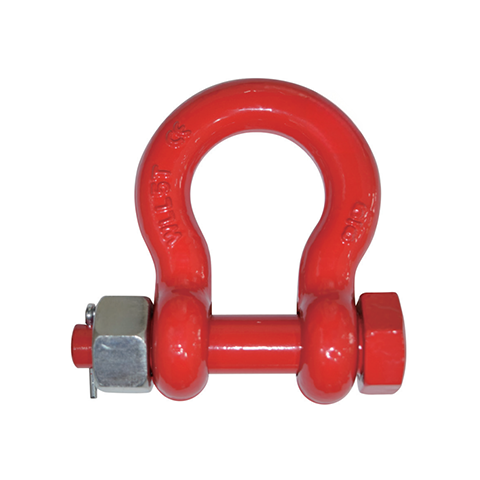

1. Both Body And Bolt Alloy Steel-Quenched And Tempered
2. MBL Tested By Random Pick Each Lot
3. 100% Magnaflux Crack Detection
4. Surface Finish:Powder Coated
5. Working Temperature -40°C-200°C
6. Safety Factor 5:1
7. According To Standard EN13889+A1-2008
|

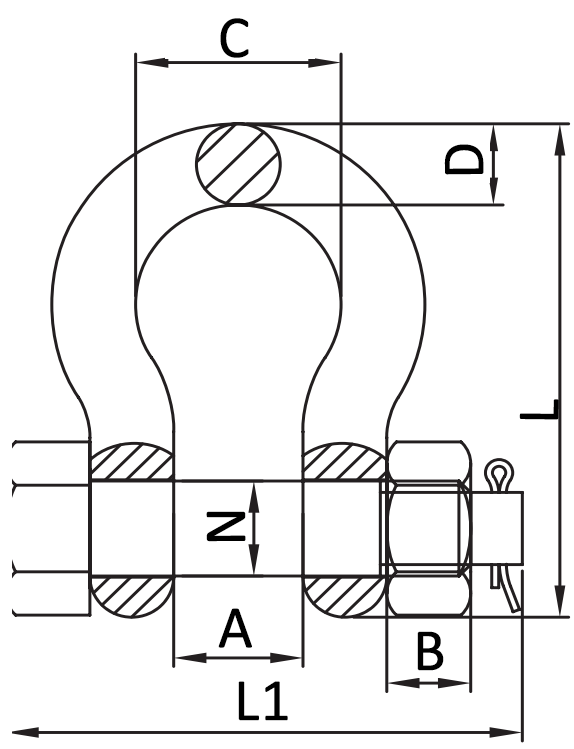

Drawing |
Item No. |
Size |
Dimension(mm) |
WLL(t) |
KG/PC |
||||||
|
A |
B |
C |
D |
L |
L1 |
N |
|||||
|
|
DS0834-5/16 |
5/16” |
13.5 |
8.4 |
21.3 |
8 |
53 |
50.5 |
9.5 |
1.2 |
0.10 |
|
DS0834-3/8 |
3/8” |
16.8 |
10.8 |
25.9 |
9.7 |
63.2 |
62 |
11 |
1.6 |
0.15 |
|
|
DS0834-7/16 |
7/16” |
19 |
12.8 |
29.5 |
11.2 |
74 |
70 |
13 |
2.5 |
0.22 |
|
|
DS0834-1/2 |
1/2” |
20.6 |
14.8 |
33.3 |
12.7 |
83.3 |
79.5 |
16 |
3.3 |
0.46 |
|
|
DS0834-5/8 |
5/8” |
27 |
18 |
42.9 |
17.5 |
1064 |
1015 |
19 |
5 |
0.73 |
|
|
DS0834-3/4 |
3/4” |
32 |
19.4 |
50.8 |
20.6 |
1262 |
117 |
22 |
7 |
1.10 |
|
|
DS0834-7/8 |
7/8” |
36.6 |
21.5 |
57.9 |
24.6 |
148 |
136 |
25 |
9.5 |
1.79 |
|
|
DS0834-1 |
1” |
43 |
23.8 |
68.3 |
27 |
166 |
154 |
28 |
12.5 |
2.57 |
|
|
DS0834-1-1/8 |
1-1/8” |
46 |
25.6 |
74 |
31.75 |
190 |
171 |
32 |
15 |
3.75 |
|
|
DS0834-1-1/4 |
1-1/4” |
51.6 |
31 |
82.5 |
35 |
210 |
192 |
35 |
18 |
5.31 |
|
|
DS0834-1-3/8 |
1-3/8” |
57 |
33.4 |
92 |
36 |
232 |
202 |
38 |
21 |
7.18 |
|
|
DS0834-1-1/2 |
1-1/2” |
60.5 |
34 |
98 |
41 |
254 |
222 |
42 |
30 |
9.43 |
|
|
DS0834-1-3/4 |
1-3/4” |
73.2 |
38 |
126 |
57.2 |
3137 |
278 |
51 |
40 |
15.38 |
|
|
DS0834-2 |
2” |
82.5 |
45 |
146 |
61 |
347 |
307 |
57 |
55 |
23.70 |
|
