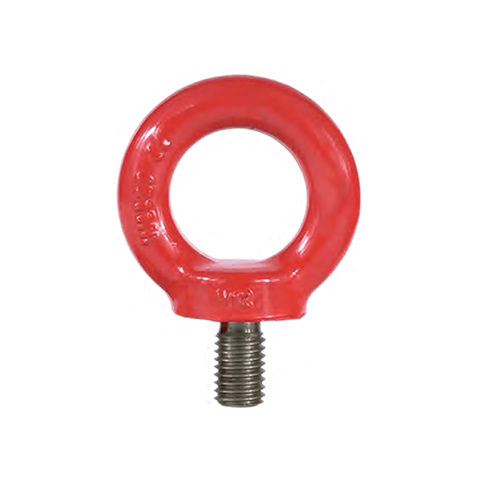

1. Alloy Steel -Quenched And Tempered
2. Individually Proof Tested at 2.5 Times Of The WLL
3. MBL Tested By Random Pick Each Lot
4. Fatigue Tested At 1.5 Time Of The WLL By Random Pick Each Lot
5. 100% Magnaflux Crack Detection
6. Surface Finish:Powder Coated
|
Item No. |
Size (mm) |

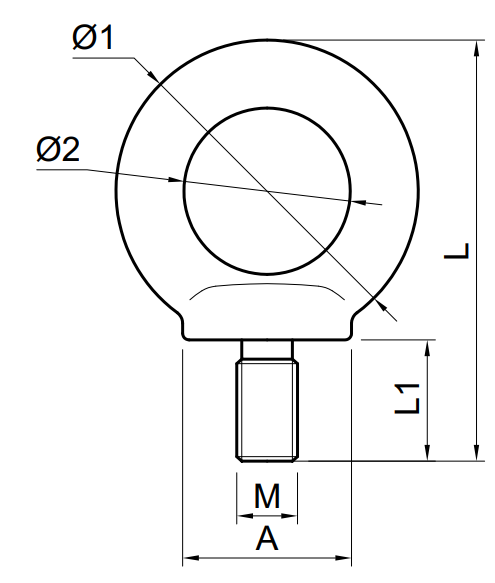

Dimension(mm) |

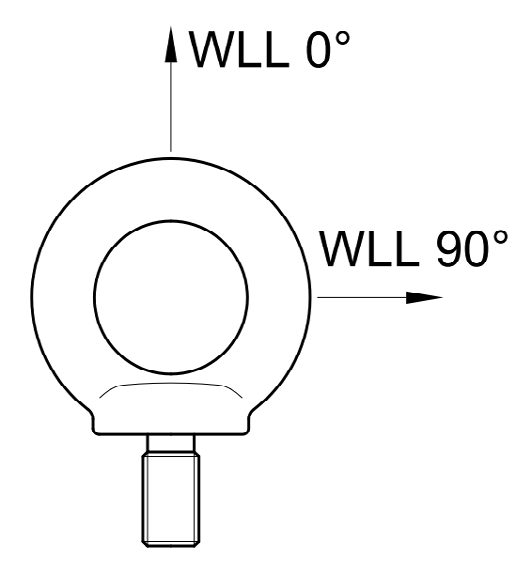

WLL(t) |
KG/PC |
||||||
|
A |
L |
L1 |
M |
⌀1 |
⌀2 |
0° |
90° |
|||
|
DS0831-06 |
M6 |
17 |
42 |
13 |
6 |
28 |
16 |
0.4 |
0.15 |
0.05 |
|
DS0831-08 |
M8 |
20 |
51 |
15 |
8 |
36 |
20 |
0.8 |
0.4 |
0.06 |
|
DS0831-10 |
M10 |
25 |
63 |
18 |
10 |
45 |
25 |
1 |
0.4 |
0.11 |
|
DS0831-12 |
M12 |
30 |
73.5 |
20.5 |
12 |
54 |
30 |
2 |
0.75 |
0.18 |
|
DS0831-14 |
M14 |
35 |
83 |
27 |
14 |
53 |
35 |
3 |
1 |
0.28 |
|
DS0831-16 |
M16 |
35 |
89 |
27 |
16 |
53 |
35 |
4 |
1.5 |
0.28 |
|
DS0831-18 |
M18 |
40 |
101 |
30 |
18 |
72 |
40 |
5 |
2 |
0.45 |
|
DS0831-20 |
M20 |
40 |
101 |
30 |
20 |
72 |
40 |
6 |
2.3 |
0.45 |
|
DS0831-24 |
M24 |
50 |
128 |
36 |
24 |
90 |
50 |
8 |
3.2 |
0.87 |
|
DS0831-27 |
M27 |
50 |
128 |
36 |
27 |
90 |
50 |
10 |
4 |
0.87 |
|
DS0831-30 |
M30 |
65 |
154 |
45 |
30 |
108 |
60 |
12 |
4.5 |
1.66 |
|
DS0831-33 |
M33 |
65 |
154 |
45 |
33 |
108 |
60 |
14 |
5 |
1.66 |
|
DS0831-36 |
M36 |
75 |
183 |
54 |
36 |
126 |
70 |
16 |
7 |
2.65 |
|
DS0831-39 |
M39 |
75 |
183 |
54 |
39 |
126 |
70 |
20 |
8 |
2.65 |
|
DS0831-42 |
M42 |
85 |
211 |
63 |
42 |
144 |
80 |
24 |
9 |
4.03 |
|
DS0831-45 |
M45 |
85 |
211 |
63 |
45 |
144 |
80 |
28 |
10 |
4.06 |
|
DS0831-48 |
M48 |
100 |
235 |
68 |
48 |
166 |
90 |
32 |
12 |
6.38 |
|
DS0831-52 |
M52 |
100 |
235 |
68 |
52 |
166 |
90 |
36 |
13.5 |
6.38 |
|
DS0831-56 |
M56 |
100 |
265 |
78 |
56 |
184 |
100 |
40 |
15 |
8.46 |
|
DS0831-64 |
M64 |
120 |
298 |
90 |
64 |
206 |
110 |
50 |
17 |
12.1 |
