1. Alloy Steel -Quenched And Tempered
2. All Sizes Forged
3. Individually Proof Tested at 2.5 Times Of The WLL
4. MBL Tested By Random Pick Each Lot
5. 100% Magnaflux Crack Detection
6. Surface Finish:Powder Coated
7. Suitable For EN818-2 G80 Chain
|

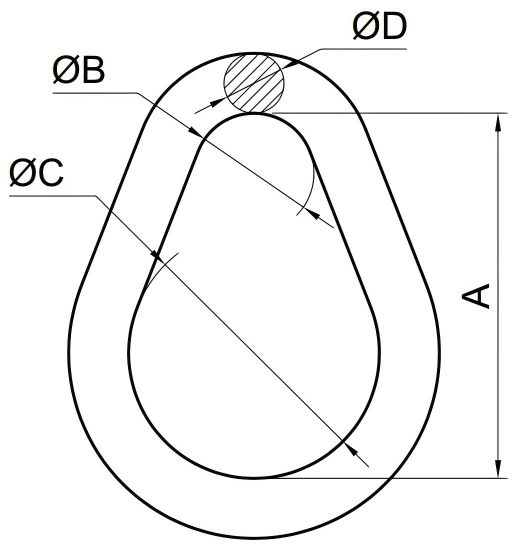

Drawing |
Item No. |
Size(⌀D) |
WLL |
Dimension(MM) |
KG/PC |
||
|
A |
⌀B |
⌀C |
|||||
|
|
DS0809-3/8 |
3/8” |
1.6 |
57.2 |
19 |
38.2 |
0.1 |
|
DS0809-1/2 |
1/2” |
3.2 |
86.2 |
25.4 |
50.8 |
0.25 |
|
|
DS0809-5/8 |
5/8” |
4 |
95.3 |
31.8 |
63.5 |
0.5 |
|
|
DS0809-3/4 |
3/4” |
5.6 |
114 |
38.1 |
76.2 |
0.8 |
|
|
DS0809-7/8 |
7/8” |
6.4 |
133.4 |
44 |
89 |
1.26 |
|
|
DS0809-1 |
1” |
11 |
152 |
50 |
102 |
1.96 |
|
|
DS0809-1-1/8 |
1-1/8” |
13.9 |
171.5 |
57.2 |
114.3 |
2.92 |
|
|
DS0809-1-1/4 |
1-1/4” |
16.3 |
190.5 |
64 |
127 |
3.75 |
|
|
DS0809-1-3/8 |
1-3/8” |
19.5 |
209.6 |
69.8 |
139.7 |
5.12 |
|
|
DS0809-1-1/2 |
1-1/2” |
24.7 |
228.6 |
76.2 |
152.4 |
6.5 |
|
|
DS0809-1-3/4 |
1-3/4” |
38.5 |
266.7 |
88.9 |
177.8 |
10.2 |
|
|
DS0809-2 |
2” |
46.5 |
304.8 |
101.6 |
203.2 |
15.3 |
|
